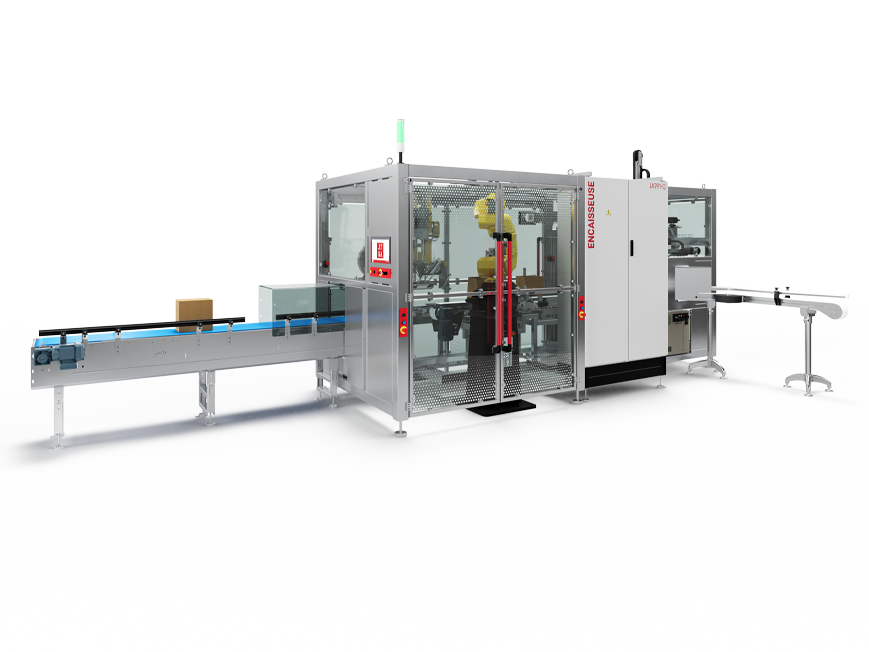

Automatic RSC top load case packer view2

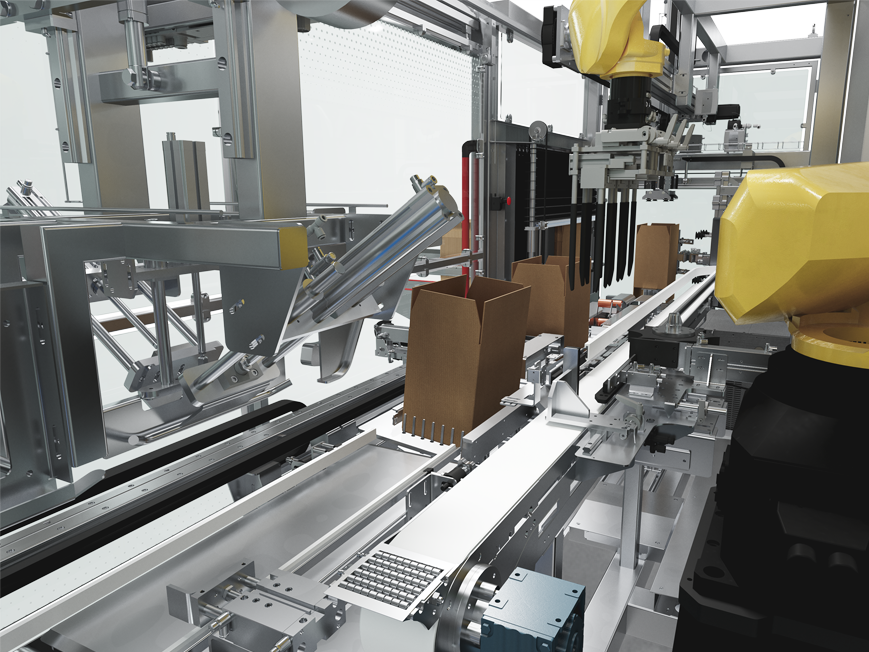

Automatic RSC top load case packer inside

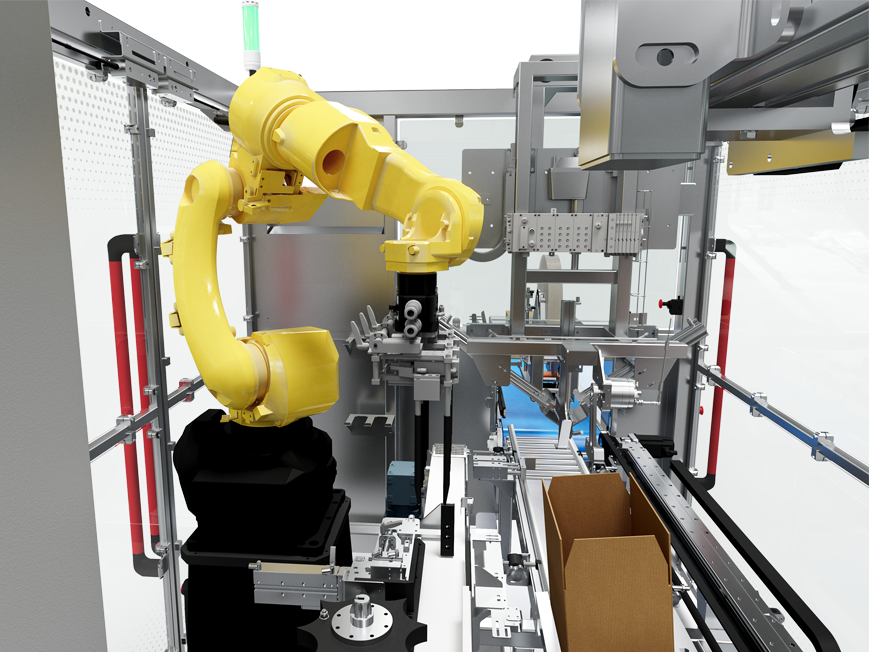

Automatic RSC top load case packer robot

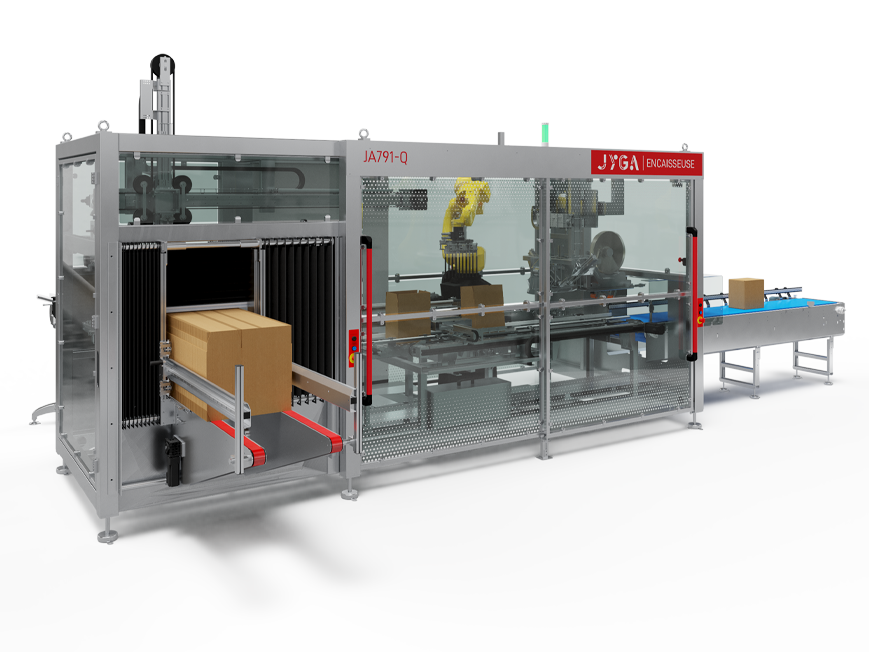

Automatic RSC Case Packer

The automatic RSC case packer is designed for top-load packing of a wide range of products. Compact and modular, it loads products into pre-formed cases such as RSC cases, trays and shelf-ready cases. The solution can be adapted to the available layout and can include an integrated case-forming module where required. Robust and multifunctional, this vertical case packer provides reliable case handling and accurate product arrangement. Its open, ergonomic design provides straightforward operator access to the different machine stations.

Request documentation

I would like similar equipment

Footprint from

1500 x 2500 mm

Throughput up to

8 cases/min

Case length

150 to 600 mm

Format changeovers

Under 5 min

Cases compatible with this machine

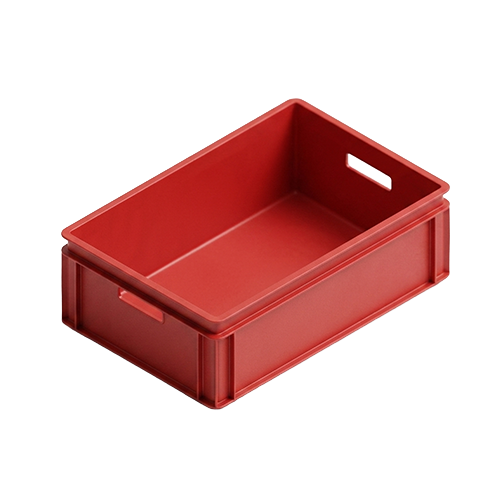

Plastic crate

Shelf-ready

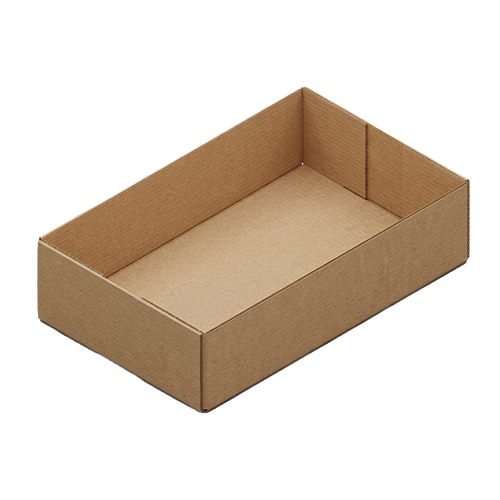

tray

Tray

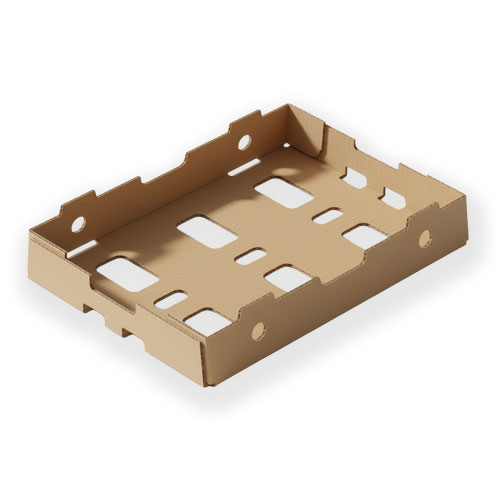

Tapered
case

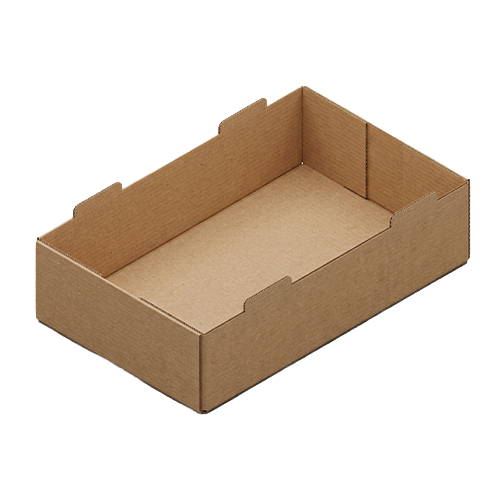

Tray
with tabs

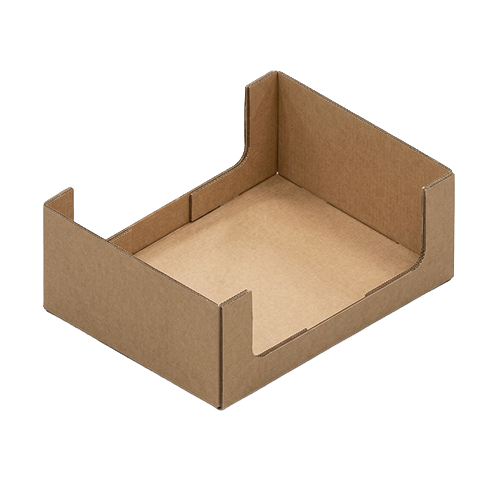

Open
tray

Symmetrical
shelf-ready tray

Close-fitting
shelf-ready tray

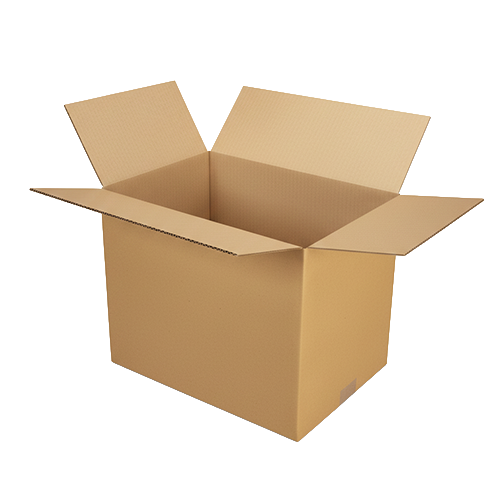

RSC
case

Closed RSC
case

Automatic top-load case packing

The top-load case packer is a compact automatic solution designed to load products from above into pre-formed cases. A complete top-load case packing cell can combine three modules: an automatic case former, a multi-function vertical case packer and a case closer. The case is therefore formed upstream of the loading station within the same automated system. The solution can pack a wide variety of products into numerous case formats, including trays, open trays, shelf-ready trays, open cases, RSC cases and retail-ready packaging.

Suitable for both self-supporting and non-self-supporting products — cartons, trays, pots, stand-up pouches, flow packs, bottles, bags, packaged products and pouches — the top-load case packer meets the needs of food and beverage, cosmetics, hygiene, healthcare, pharmaceutical and other industrial applications. The cases produced by the multi-format top-load system provide strong product protection and good stability for palletising.

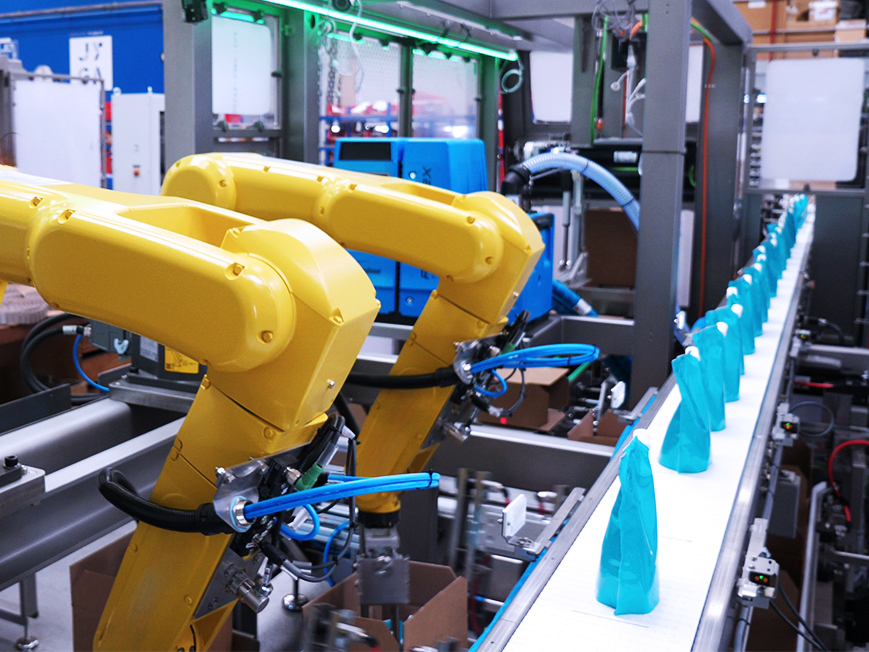

Automatic RSC top load case packer products

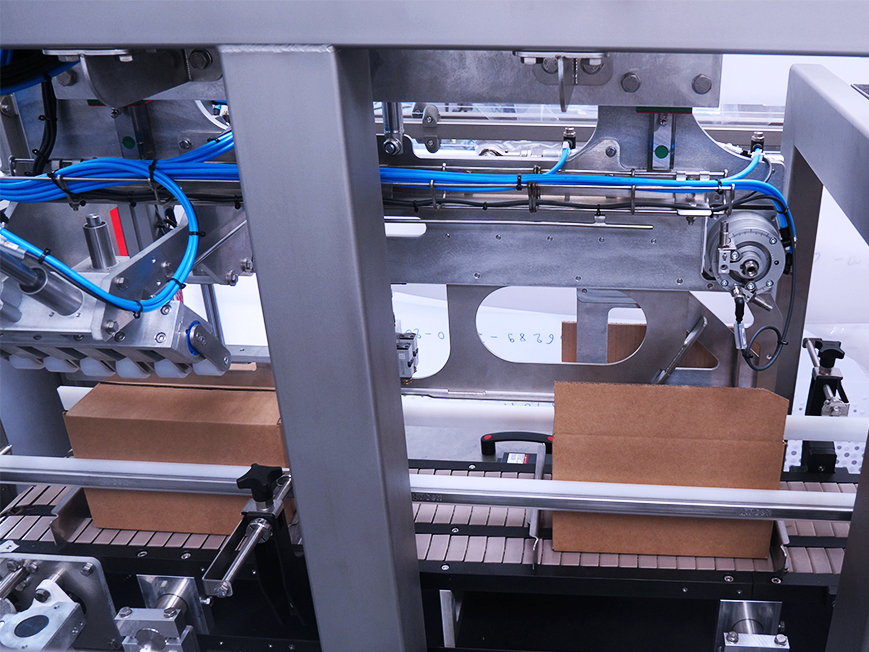

Automatic RSC top load case packer case closing

This flexible technology can be configured in several ways:

If you already have a case former, it can be reused and integrated upstream. The vertical case packer then performs only top loading and case closing.
If you do not have a case former but want to retain your existing case formats, the top-load case packer can be configured around those formats without requiring changes to the case design.

In a complete configuration, the vertical multi-function machine performs case forming, product loading and case closing.
The robot end-of-arm tool is developed by JYGA specifically for the products being handled, ensuring controlled handling without damaging them. Product arrangement inside the case is also optimised to minimise wasted space. JYGA develops gripping solutions for a wide range of products, including clamps, vacuum cups and fingers. Additive manufacturing technologies are used where appropriate to tailor the tooling precisely to the product.

This automatic top-load case packer can reach throughputs of up to 30 cases per minute, depending on the application.

Top-load case packer options

Multi-colour LED lighting to indicate machine status
Selective-event camera recording
Sliding or hinged doors
Machine customised in your company colours

A colour-coded location system can help operators quickly identify the area requiring attention.

JYGA can integrate cameras into the automatic top-load case packer, allowing operators to review machine events directly from the HMI.

On request, the multi-function vertical case packer can be finished in your company colours to match your production environment.

Benefits of the top-load case packer

JYGA case packers are designed for robust industrial use and are built mainly from stainless steel. They can be adapted to installation constraints and demanding environments, including humidity and heat. This robust construction is combined with a clean, open design. Full-height access doors and the absence of floor cross-members make it easier for operators to reach the different machine stations.

The user-friendly, ergonomic human-machine interface (HMI) makes the pick-and-place case packer straightforward to operate. An intuitive navigation system allows the user to start production and change formats automatically in just a few seconds. Access to technical documentation, video tutorials and event-recording cameras can also be integrated into the HMI. This HMI concept was developed in collaboration with customers and specialists to provide a highly intuitive operator interface.

Its modular design allows case forming, top loading and closing to be combined in one system, or an existing case former to be integrated.

Quick to learn and operate
15-inch intuitive, ergonomic HMI
Existing case former can be reused

Integrated case forming and closing
Multiple layouts, including in-line and L-shaped configurations
Handles a wide range of case formats
