Machine type
Robotic Palletizing for Yogurt
Product type

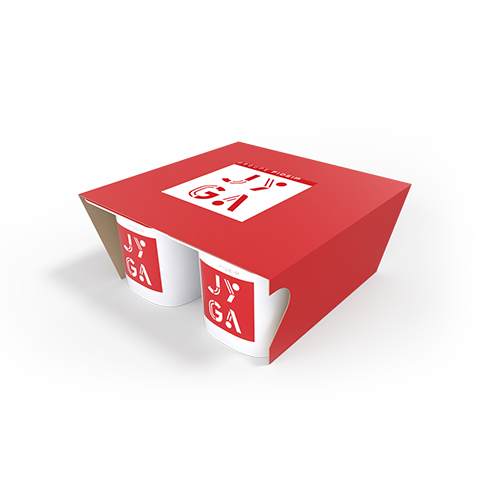

Yogurt cups
Number of formats
3 formats
Company
This application was developed for a company specialising in dairy-product processing. The company contacted JYGA for a project to automatically palletize yoghurt multipacks.
Project & solution
To meet this requirement, JYGA recommended installing a single-line robotic palletizer.
The palletizing cell includes a 4-axis palletizing robot with a vacuum plate, a tilting layer-pad magazine, integration of a marking system, a row-preparation conveyor and a palletizing station on a conveyor.
Related machine
Automatic Single-Line Palletiser
Benefits of the JYGA solution
- Single-line solution: dedicated palletizing for yoghurt multipacks.
- 4-axis robot: vacuum plate for reliable batch handling.
- High throughput: up to 6,000 multipacks/hour, or 6 pallets/hour.
- Enhanced traceability: integrated marking for batch tracking.
- Layer-pad management: tilting magazine helps stabilise pallets.
- Compact cell: easy integration at the end of a dairy line.
Specifications and results
| Machine | product | pallet | ||
|---|---|---|---|---|
| Footprint (L x W x H) | Dimensions (L x W x H) | Throughput | Dimensions (L x W x H) | Throughput |
| 4 820 x 3 120 x 2 500 mm | 125 x 125 x 62 mm | 6000 packs/hour | 1200 x 800 x 145 mm | 6 pallets/hour |
