JYGA designed a compact, modular palletiser for a major company in the wine sector that wanted to improve its production lines.
The compact palletiser had to automatically palletise wooden cases and perform the following functions: receive full cases from the strapping machine, receive empty pallets, palletise the cases and discharge full pallets.
Project & solution
To meet the customer’s palletising requirements, JYGA proposed the Pal’it One compact palletiser. This palletising cell consists of several functional modules: layer-pad magazine, pallet magazine and two floor pallet positions. The palletising cell can be expanded by adding pallet conveyors at the outfeed.

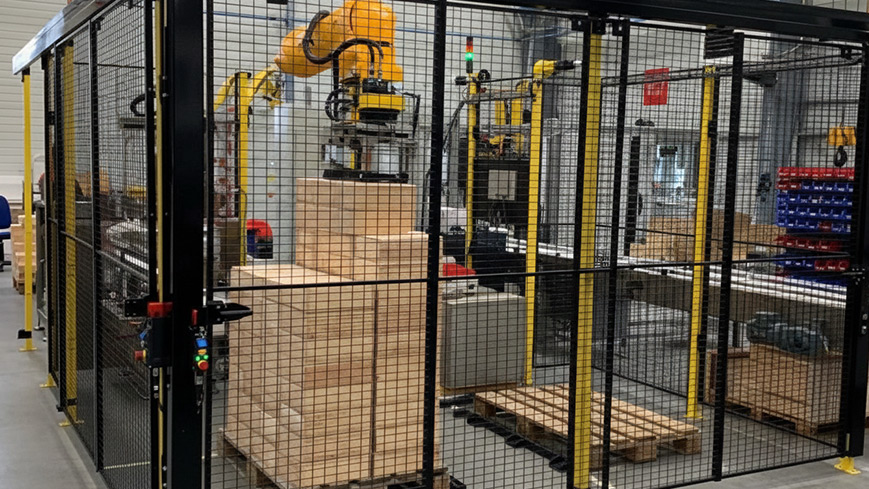

Wooden cases arrive on a conveyor towards the Pal’it One compact palletiser. They are picked by a gripper and placed on a pallet. The gripper is fitted with a mechanical anti-slip system. Palletising can be performed in single mode with one pallet or in dual mode with two pallets on either side of the palletising cell.
Related machine

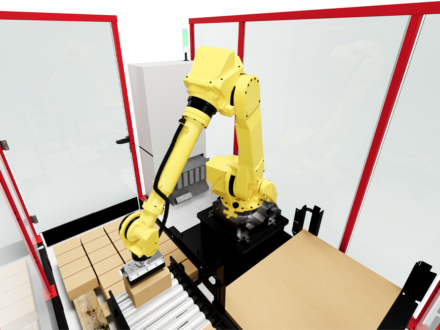

Compact Palletiser Pal’it One
Benefits of the JYGA solution
- Compact solution: Pal’it One palletiser dedicated to wooden cases.
- Secure gripping: gripper with mechanical anti-slip system.
- Pallet/layer-pad management: magazines integrated into the cell.
- Single or dual pallet: one or two floor pallet stations.
- Scalable cell: pallet outfeed conveyors can be added.
- Improved ergonomics: reduced manual handling in winery operations.
Specifications and results
| Machine | Cases | Pallets | |
|---|---|---|---|
| Footprint (L x W x H) | Dimensions (L x W) | Throughput | Dimensions (L x W x H) |
| 3550 x 4050 x 2840 mm | 330 x 101 x 97 min546 x 328 x 220 maxMax. weight 21kg | 2 to 15 cases/min | 1200 x 800 mm |
