Client project – Technical solution
Case Packer for Cream Cartons
Product
Cosmetic cartons
Company
This application was developed for an international company specialising in cosmetics and luxury goods. The company contacted us for a solution to pack cartons containing skincare-cream cups into cases.
Project & solution
To meet this requirement, JYGA recommended the installation of a case packer for custom small-format cardboard boxes.
This automatic cartoning system automatically packs cream cartons into boxes. The cartons arrive on a conveyor and are transferred one by one to form batches of three cartons. A code-reading system checks them during transfer.
At the same time, the box blanks are preformed against a guide. Once formed, the box is presented at the packing station. A robot fitted with a gripper picks the batch of three cartons and places it into the box. The boxes are then closed and discharged. A label is applied just before the boxes leave the cell.
Related machine

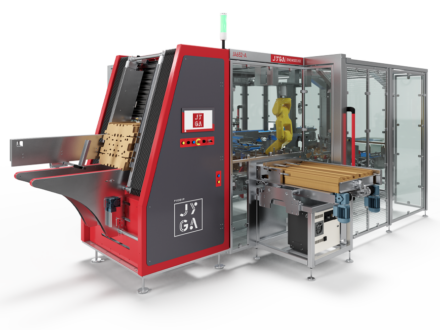

Custom Case Packer
Benefits of the JYGA solution
- Multi-format: up to 16 cream-carton formats handled.
- Automatic packing: batches of 3 cartons formed and boxed without manual handling.
- Premium presentation: small-format cardboard boxes suited to luxury products.
- Controlled throughput: up to 40 cartons/min and 14 boxes/min.
- Robot with gripper: dedicated tooling for precise, gentle handling.
- Compact cell: optimised footprint for integration into a cosmetics line.
Specifications and results
| Machine | boxes | cartons | ||
|---|---|---|---|---|
| Footprint (L x W x H) | Dimensions (L x W x H) | Throughput | Dimensions (L x W) | Throughput |
| 5 500 x 2 250 x 2 000 mm | 166 to 288 x 65 to 97 x 54 to 87 mm | 14 boxes/min | 54 to 93 x 53 to 93 x 44 to 81 mm | 40 cartons/min |
