Client project – Technical solution
Case Packing for Pet Food Sachets
Product

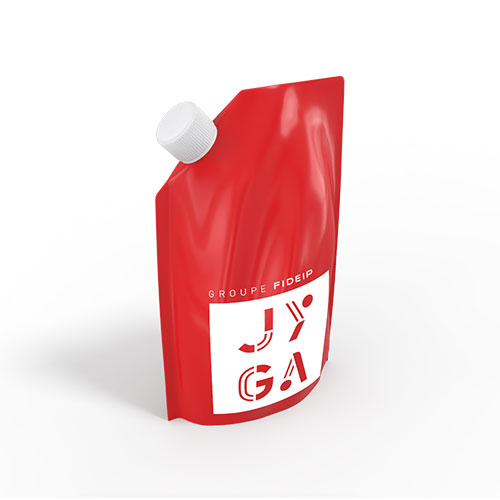

Stand-up pouches
Packaging
Company
This application was developed for a French company specialising in pet-food production. The company asked JYGA to supply an automatic unloading and case-packing system for pet-food stand-up pouches.
Project & solution
To meet this requirement, JYGA recommended the installation of three machines: a stand-up-pouch unloading system, a tray former and a PAV-style case packer with lid.
The tray former forms the PAV-style cases, which are then distributed to the lanes feeding the case-packing modules.
At the case-packing station, the stand-up pouches are stacked to form a batch. The batch is then presented in front of the tilted cases.
A lid is placed on the full cases. Once the lid has been glued, the full closed cases are discharged in line onto a marking conveyor and then onto a gravity conveyor for manual collection.
Related machine
Multi-Format wrap around Case Packer 4.0
Benefits of the JYGA solution
- Complete solution: integrated unloading, tray forming and case packing.
- PAV-style cases with lids: retail-ready packaging and optimised logistics.
- Automated case packing: batches of sachets presented in front of the tilted cases.
- High throughput: up to 250 sachets/min and 25 cases/min.
- Compact machine: tray former + case packer in less than 9 m.
- Simplified end of line: integrated marking and manual collection on a gravity conveyor.
Specifications and results
| Machine | Case | Product | ||
|---|---|---|---|---|
| Footprint (L x W x H) | Dimensions (L x W x H) | Throughput | Dimensions (L x W x H) | Throughput |
| 8 900 x 3 600 x 2000 mm (tray former + case packer) | 193 x 94 x 141 and 386 x 94 x 141 mm | 25 cases/min | 138 x 95 x 15 mm | 250 sachets/min |
