Client project – Technical solution
Wrap-Around Case Packer for Mozzarella Blocks
Product
Mozzarella blocks
Packaging
Company
JYGA developed a new-generation multi-format case packer for one of its customers, a major and committed player in the dairy industry.
The machine packs mozzarella blocks into shelf-ready cases.
The multi-format case packer forms cases from flat cardboard blanks, loads the products using a suction-based gripping system, closes the cases and discharges them.
Project & solution
To meet this requirement, JYGA recommended installing a Multi-Format 4.0 case packer. This compact machine combines three functions: forming, case packing and closing.
The mozzarella blocks arrive on a batch conveyor for pickup by the loading manipulator in layers of four blocks.
At the same time, the cardboard cases are formed from flat blanks.

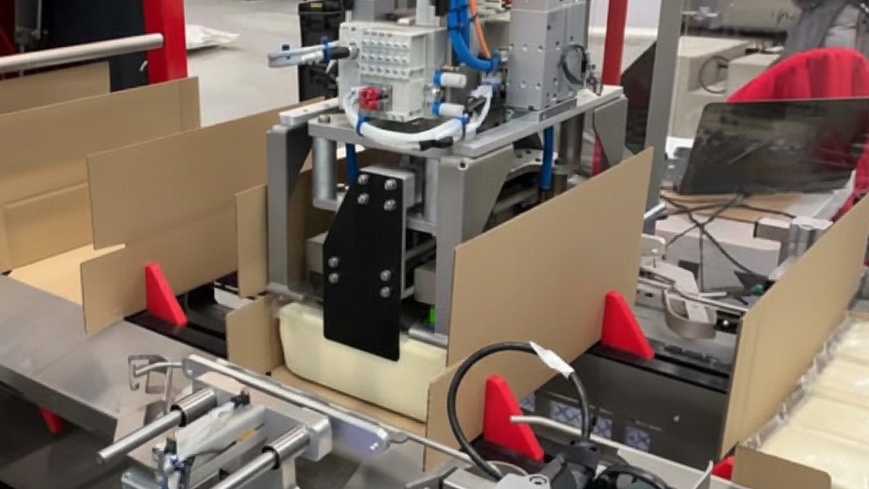

A manipulator fitted with a suction-cup gripper picks the mozzarella blocks in batches and places them into the pre-formed cardboard cases.
Once full, the cases are closed and discharged to an existing palletizer.
Related machine
Multi-Format wrap around Case Packer 4.0
Benefits of the JYGA solution
- Multi-format: handles 3 mozzarella-block formats.
- Integrated functions: forming, case packing and closing on one machine.
- Industrial throughput: up to 32 blocks/min and 8 cases/min.
- Reliable gripping: batches handled using a suction-cup gripper.
- Compact machine: controlled footprint for easy integration.
- Optimised end of line: cases discharged to an existing palletizer.
Specifications and results
| Machine | Cases | Cases | ||
|---|---|---|---|---|
| Footprint (L x W x H) | Dimensions (L x W) | Throughput | Dimensions (L x W x H) | Throughput |
| 5830 x 2450 x 2220 mm | 370 x 275 mm | 32 blocks/min | 386 x 290 x 106 mm | 8 cases/min |
