boxed or film-wrapped (products that cannot all be top-picked)
Company
This application was developed for a French family-owned cheese manufacturer that wanted to improve its production-line end sections. The company therefore contacted JYGA for a wrap-around case packer for Camembert cheeses, either boxed or wrapped, with full-layer product loading.
Project & solution
To meet this requirement, JYGA recommended installing a wrap-around case packer for open cases.
This machine is part of JYGA’s standard case-packer range. It automatically packs boxed or wrapped cheeses into open trays.
At the production-line outfeed, the Camembert cheeses are conveyed to the case packer and accumulate against a retractable stop. Once a complete row has accumulated, the batch-preparation manipulator transfers it to the preparation table. The manipulator repeats the operation twice to build a full layer. Once the layer is complete, it is transferred into a gripper fitted with retractable support plates. The Camembert cheeses are then placed into the formed case.
At the following stations, the case flaps are glued and pressed.
Related machine

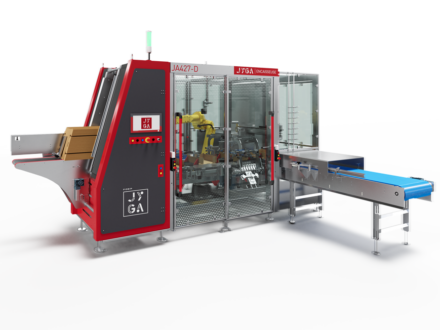

Wrap-Around Case Packer for trays
Benefits of the JYGA solution
- Full protection of the product, with products supported without pressure points
- General stainless-steel construction
- Cases closely fitted to the products
- Fast installation and easy operation
- Intuitive HMI
- Simplified adjustments
Specifications and results
| Machine | Case | Camembert cheeses | ||
|---|---|---|---|---|
| Footprint (L x W x H) | Dimensions (L x W x H) | Throughput | Dimensions (L x W x H) | Throughput |
| 4 450 x 2 200 x 2 200 mm | 287 to 417 x 191 to 288 x 55 to 97 mm | 5 to 20 cases/min | Round: 88 to 155 x 40 mmBars / Squares: 115 x 75 x 35 / 90 x 90 x 30 mm | 75 Camembert cheeses/min |
